CHUNKY CHARLIE
UNDERGROUND TANKS

Ranging from 2000L to 5000L, Chunky Charlies provide a space-efficient solution for stormwater detention. Suitable for residential, commercial, and industrial applications.
×

Underground Tanks

range

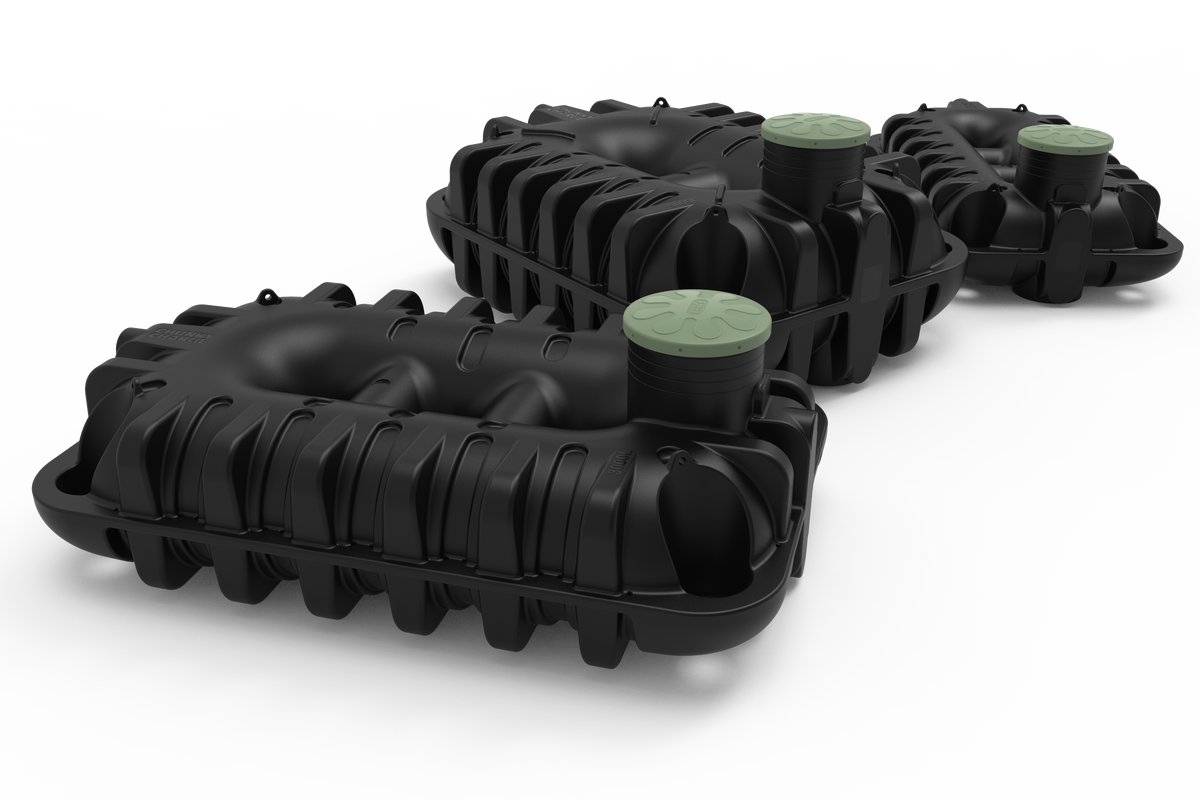

Available in sizes of 2000L, 3000L, and 5000L, offering flexible storage options for various needs. These tanks can be easily joined together to create larger volumes, accommodating growing water storage requirements.

Their modular design makes expansion straightforward, ensuring a customizable solution for both residential and commercial applications.

LID OPTIONS

Chunky Charlies come standard with a safety grate and lawn lid. Under drive lid assemblies are also available.

Also available is a lid assembly that includes a Wunder Cover suitable for pavers or exposed concrete - the ultimate out of sight option.

ENGINEERED

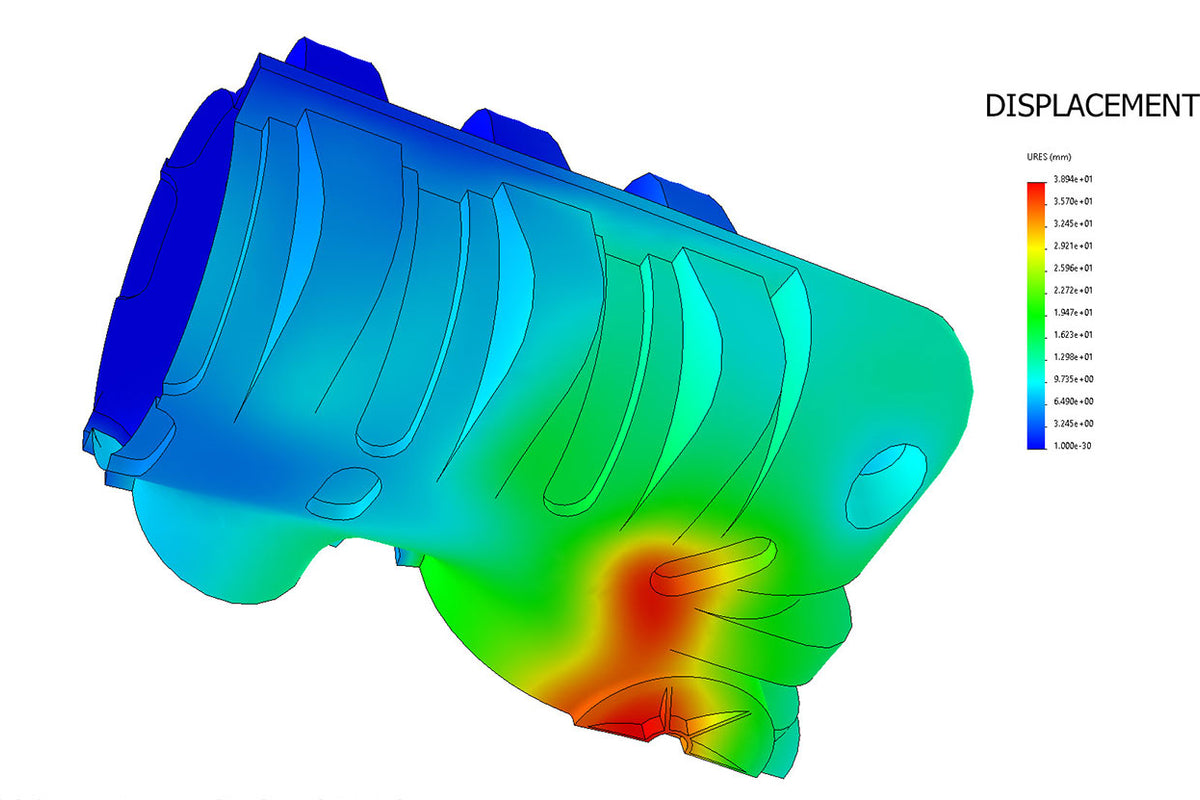

The Chunky Charlie range has undergone extensive Finite Element Analysis (FEA) testing to ensure their structural integrity under various conditions.

This rigorous process simulates real-world stresses and strains, allowing us to identify and address potential weaknesses. As a result, our tanks are designed to meet the highest standards of safety and durability.

stormwater detention

Stormwater detention and retention Chunky Charlie is engineered to meet stormwater detention and retention requirements, ensuring compliance with council regulations.

With advanced features like optimized capacity and efficient flow control, our design guarantees reliable performance during heavy rainfall. Built with durability and ease of installation in mind, our tank offers a sustainable solution for managing stormwater on any property.

CHUNKY CHARLIE product specs

SKU Capacity Length Width Height Weight
BTCC2000 2,000L 3200mm 1650mm 650mm 150kg
BTCC3000 3,000L 3200mm 1960mm 775mm 200kg
BTCC5000 5,000L 3200mm 2400mm 1000mm 250kg
